Energetic and watertight refurbishment (165)

A really interesting refurbishment proposal for a 1959 office building from a well-known catalane architect, Francesc Mitjans.

The challenge was renovating the façade, improving its thermal and watertight performance, while being respectful with a relevant building of the catalane recent architecture history.

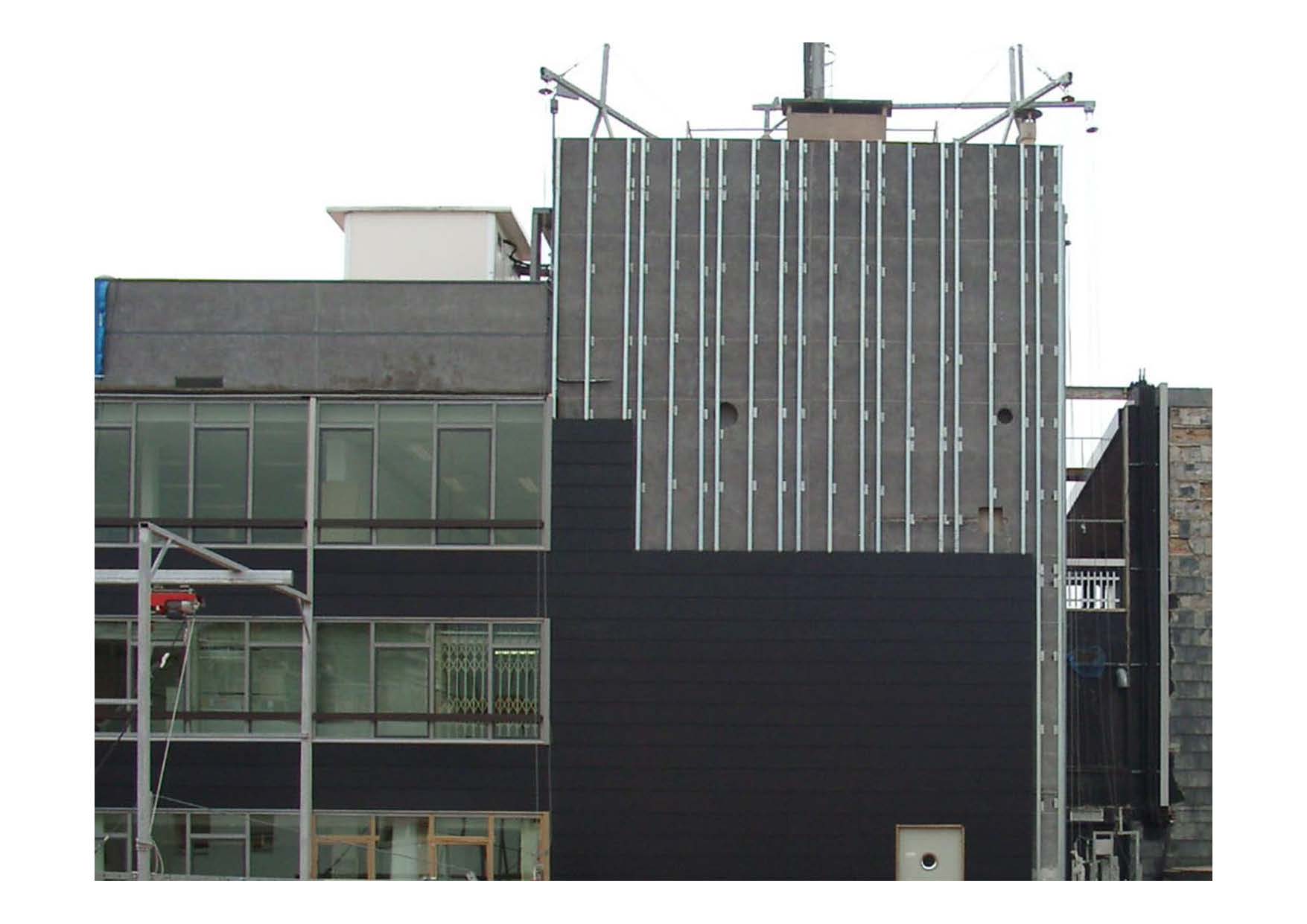

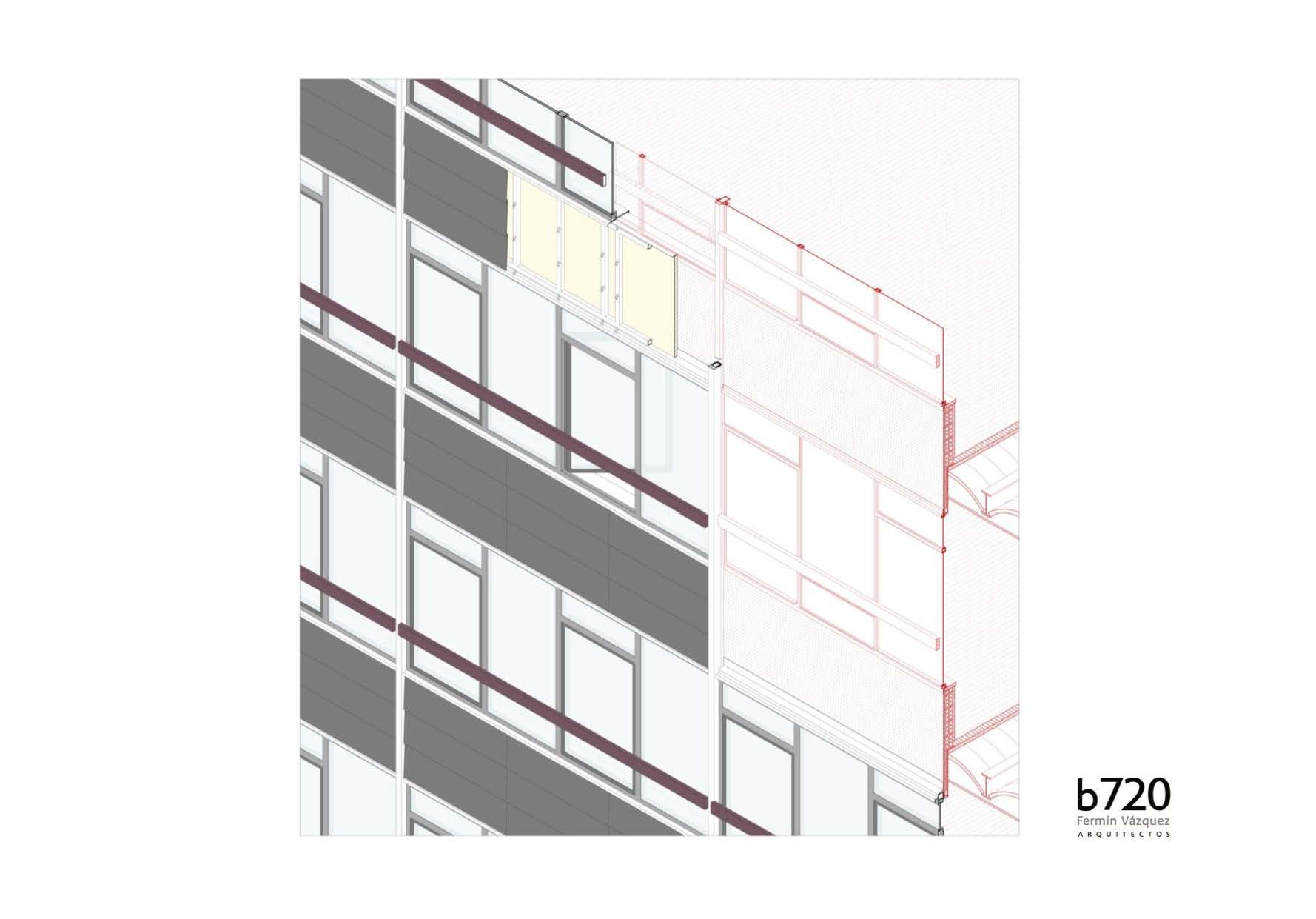

Notice in the axonometric view how the new cladding is supported over a steel frame structure so as not to add new loads over a scarce hollow brick inner wall, of only 4 cm thick over the windows!!

The Harry Walker building

Location:
Av. de Josep Tarradellas 123
08029 Barcelona Barcelona
Spain
Year of construction:
2010
Solution:
Weight of the entire facade:
Period:
Finishing material:
Supporting element:
Companies:
Photographer:

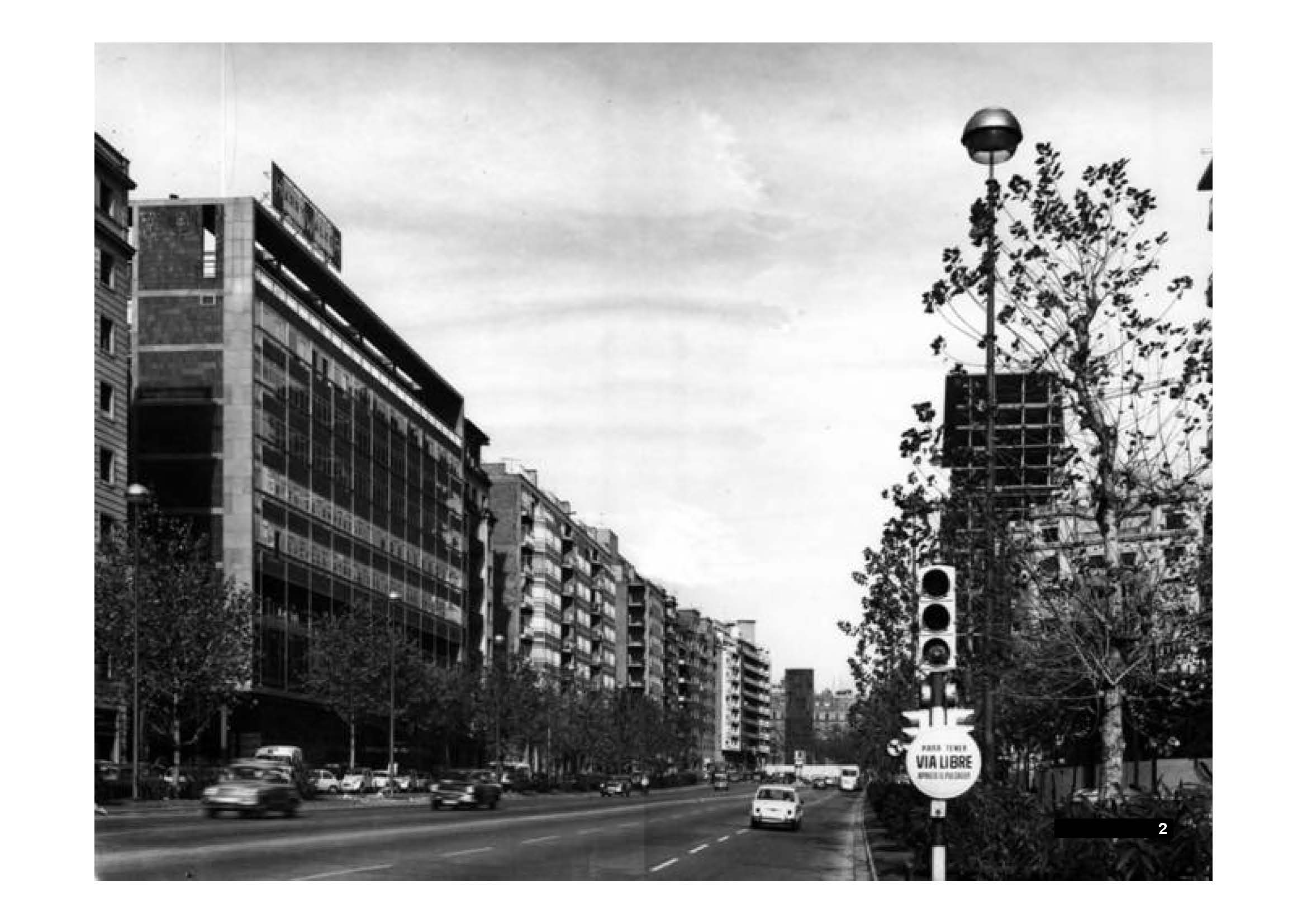

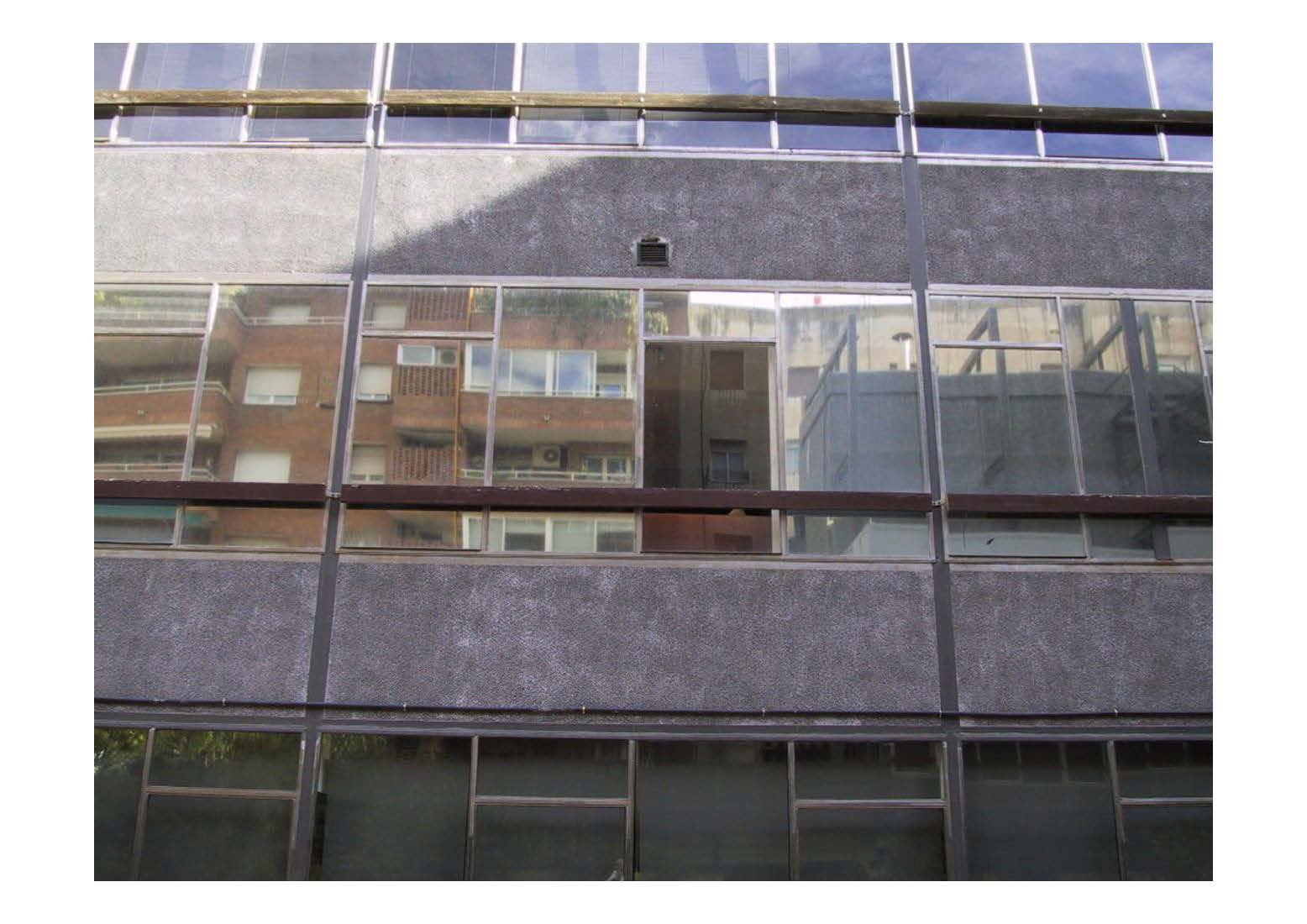

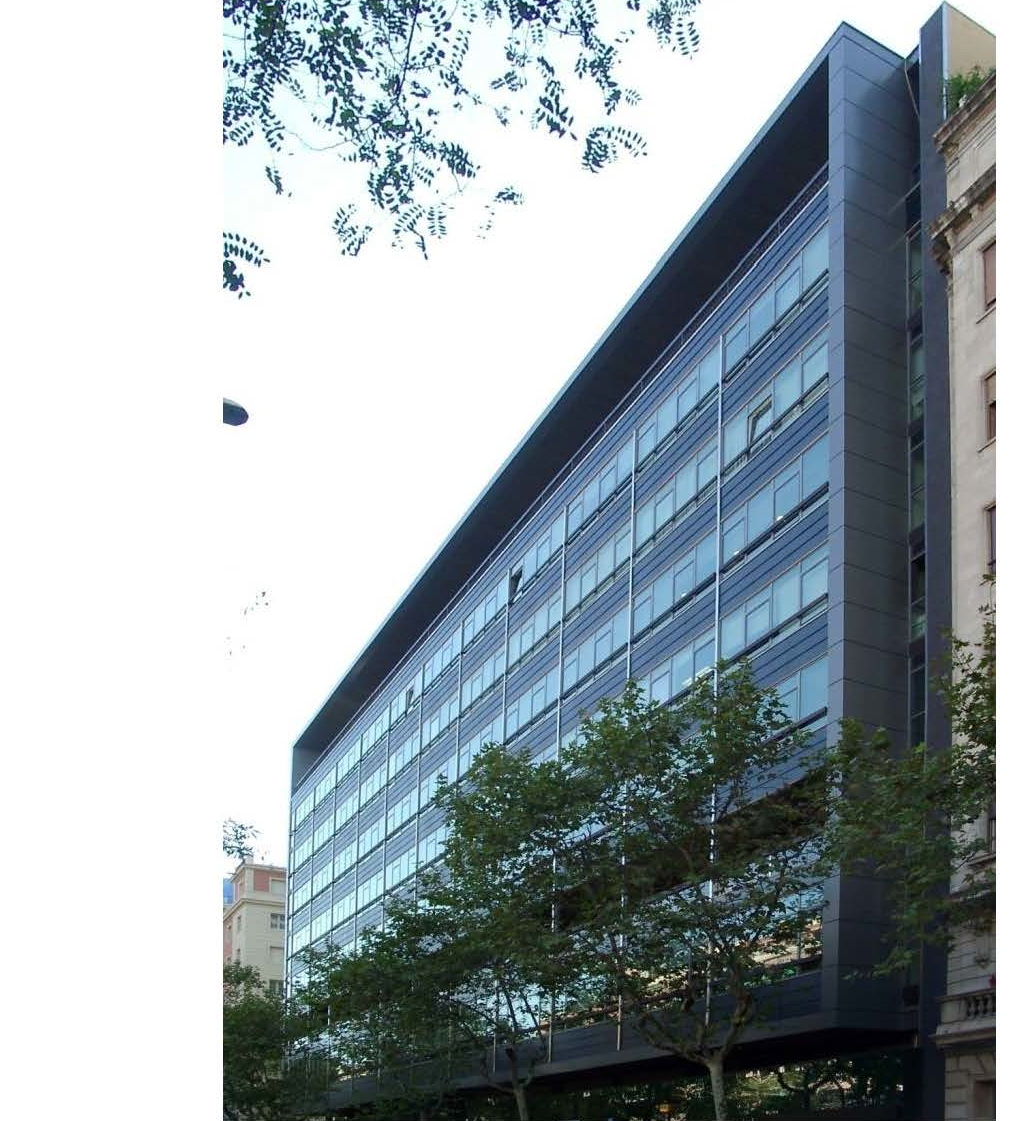

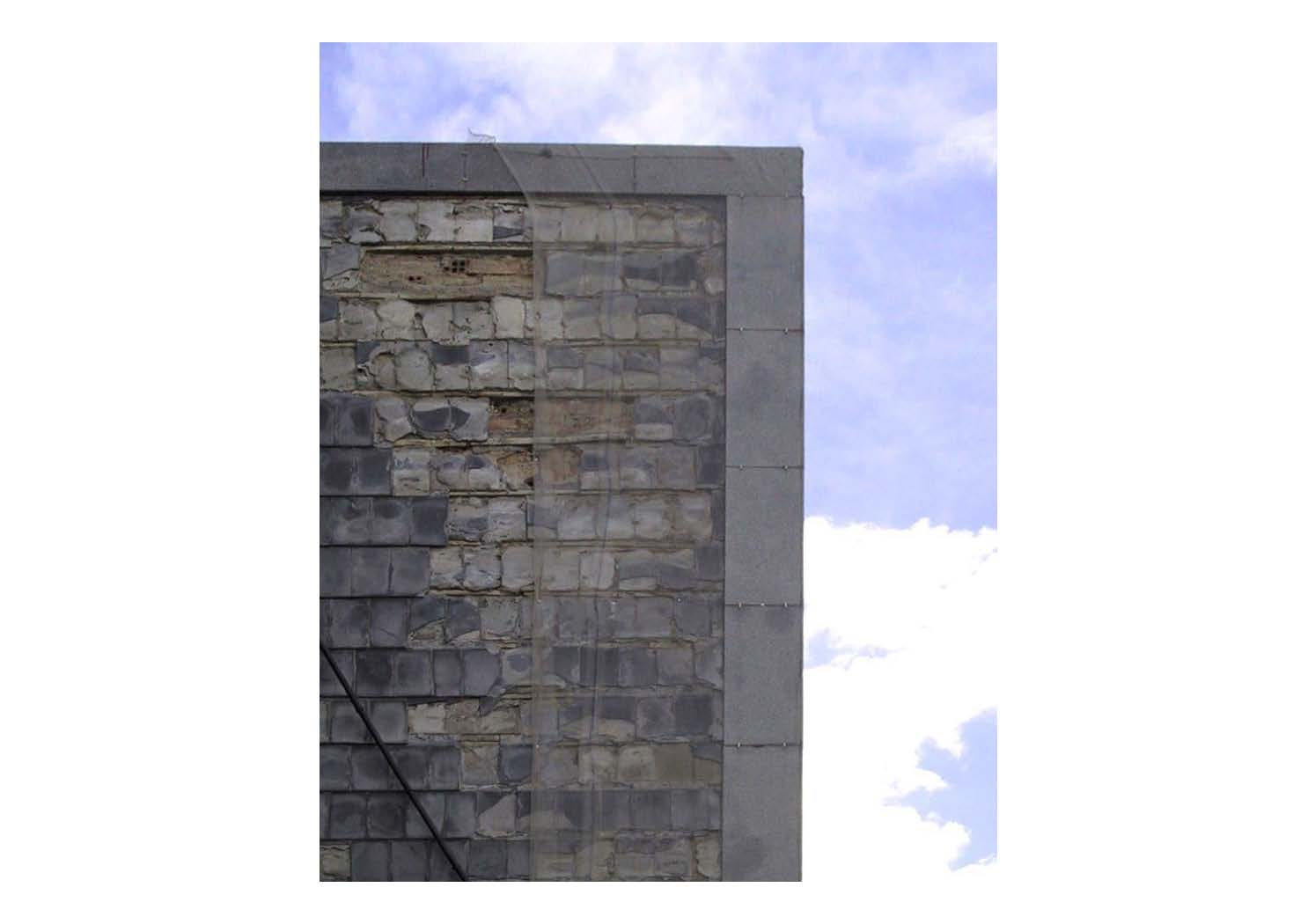

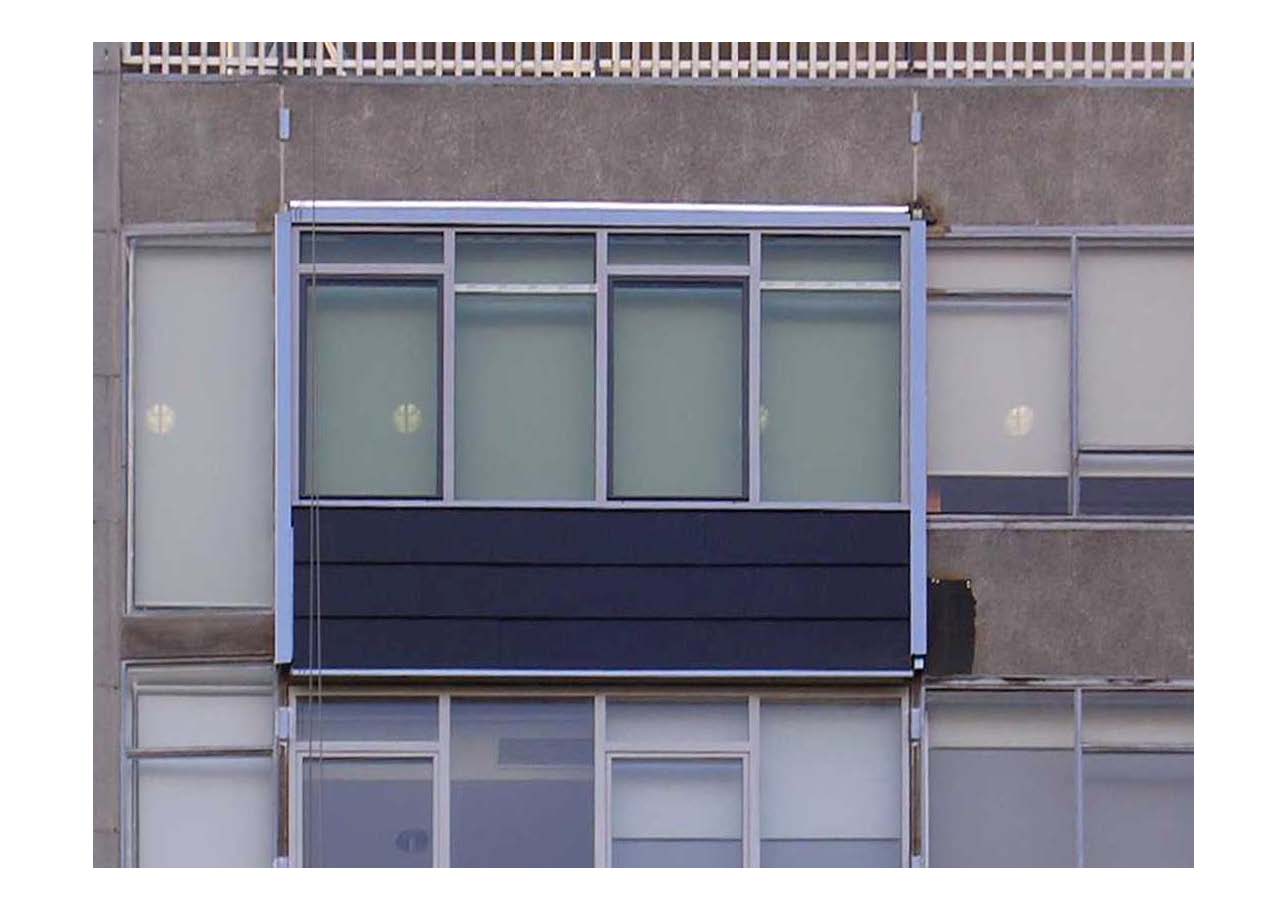

Ph 1, 3, 4, 7, 8, 9, 10,12    b720 Architects

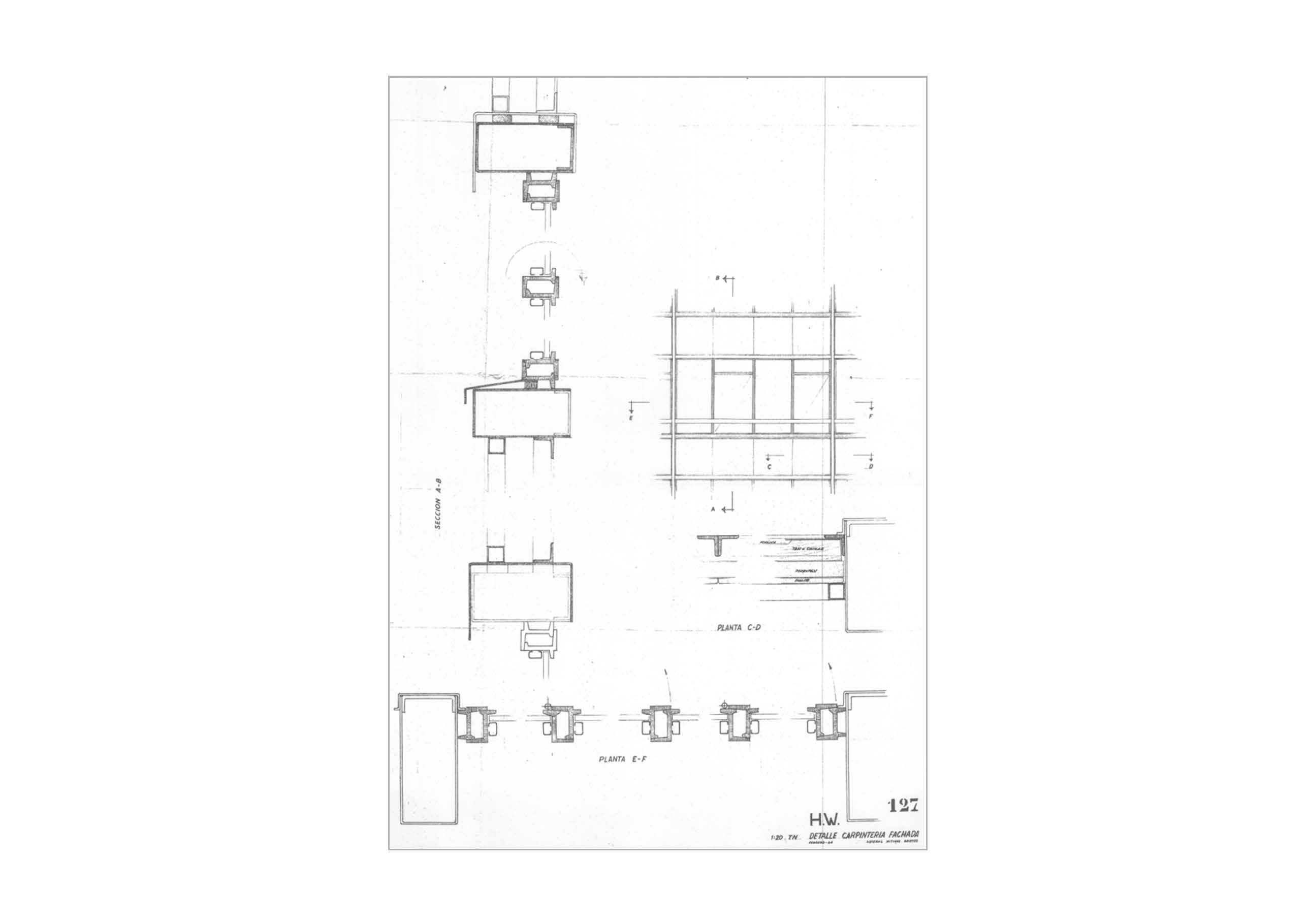

Ph 2,5,6 Centre de Documentació, Arxiu Històric COAC

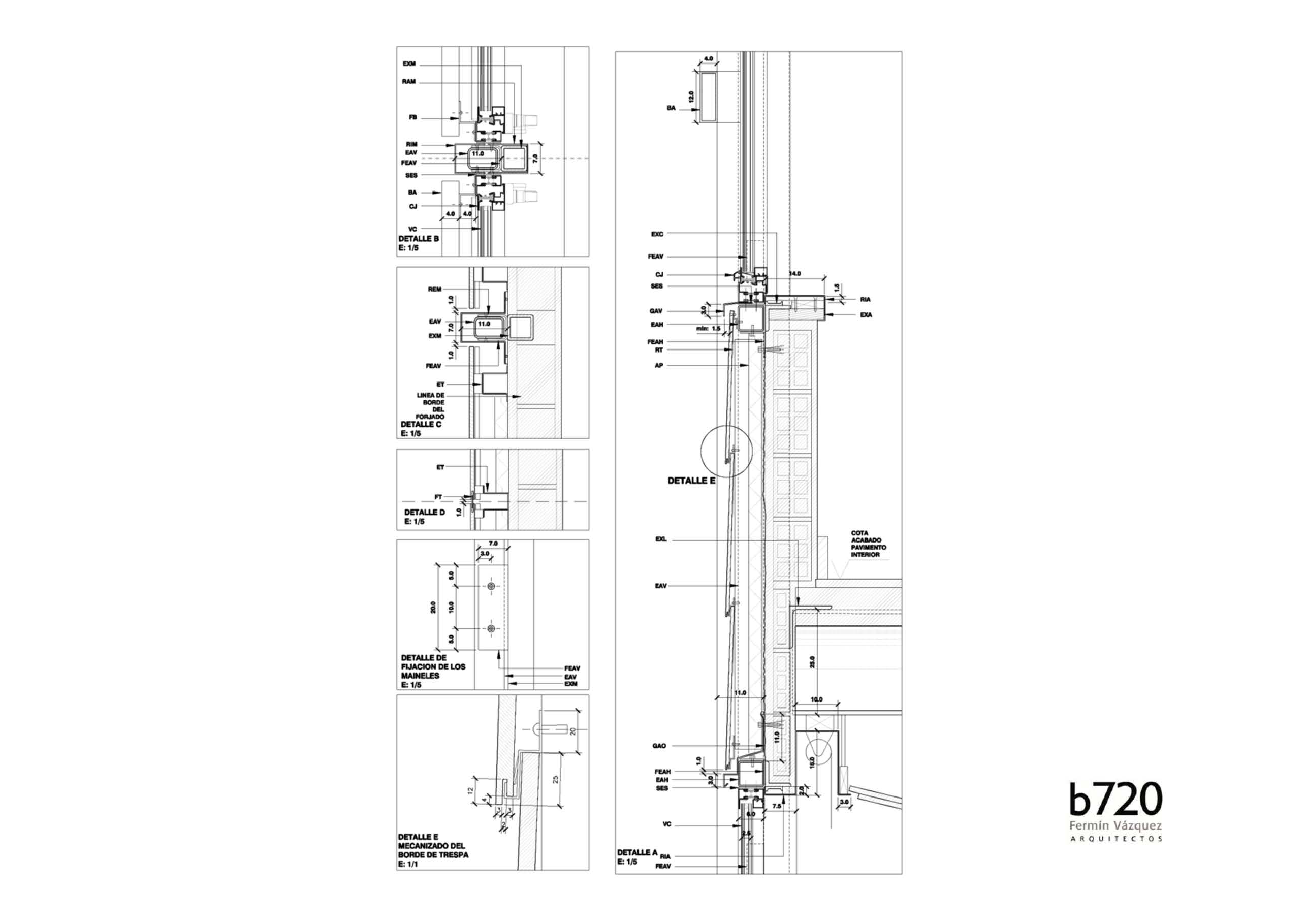

Authorship of the graphical documentation:

b720 Architects
