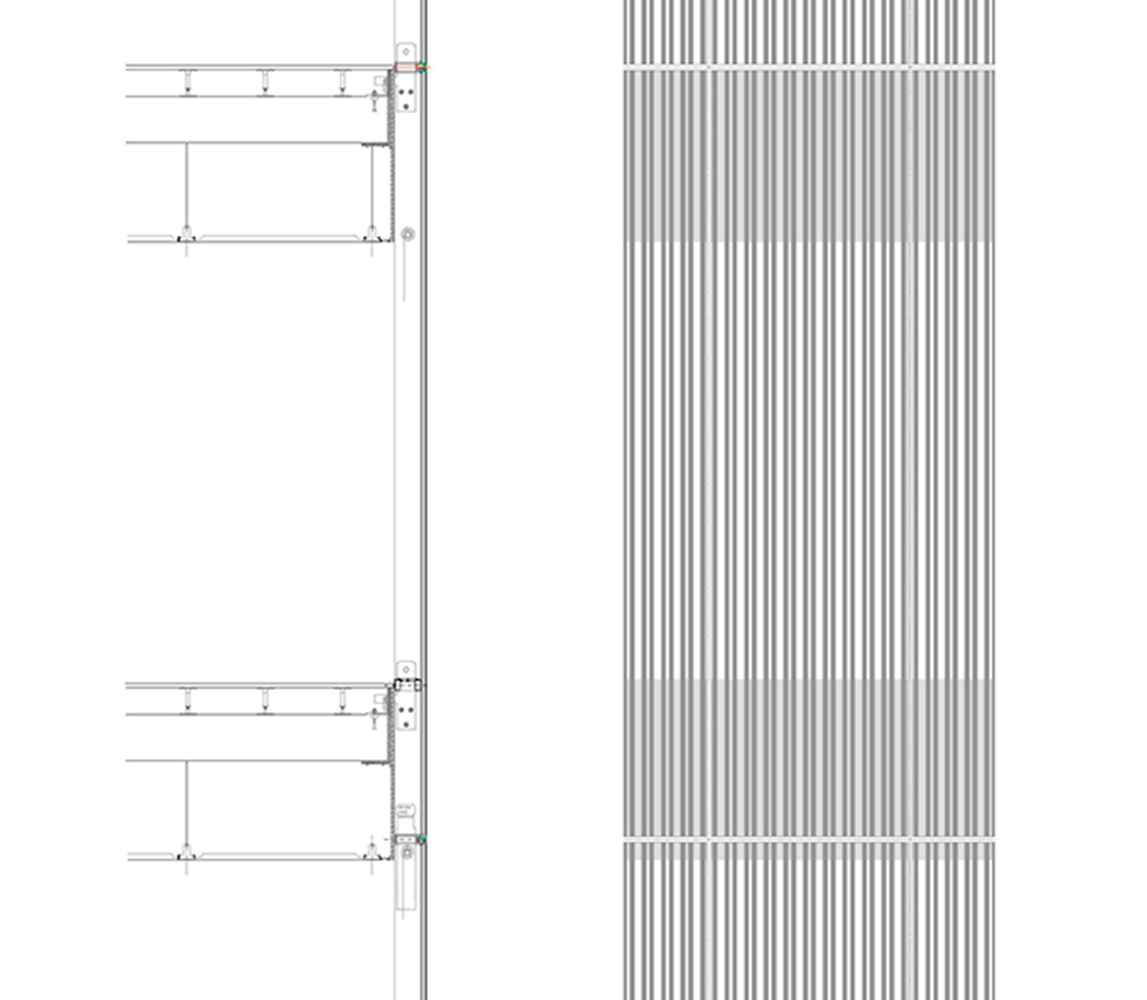

Offset in the sectorization against fire spreading (106)

Seeking for the nearly complete glass continuity in the façade has led to a solution for the fire spreading interruption between floors that is solved some centimetres offset from the glass pane.

That way, the number of joints in the façade is reduced, and so the need for profiles. The cutting does not show so evidently what is happening in the back of the façade. This gap between the glass and the sectoring panel can be used for placing a rolling blind or indirect lighting. An appropriate illumination may permit blurring the bottom limit of this sectoring element.

Video

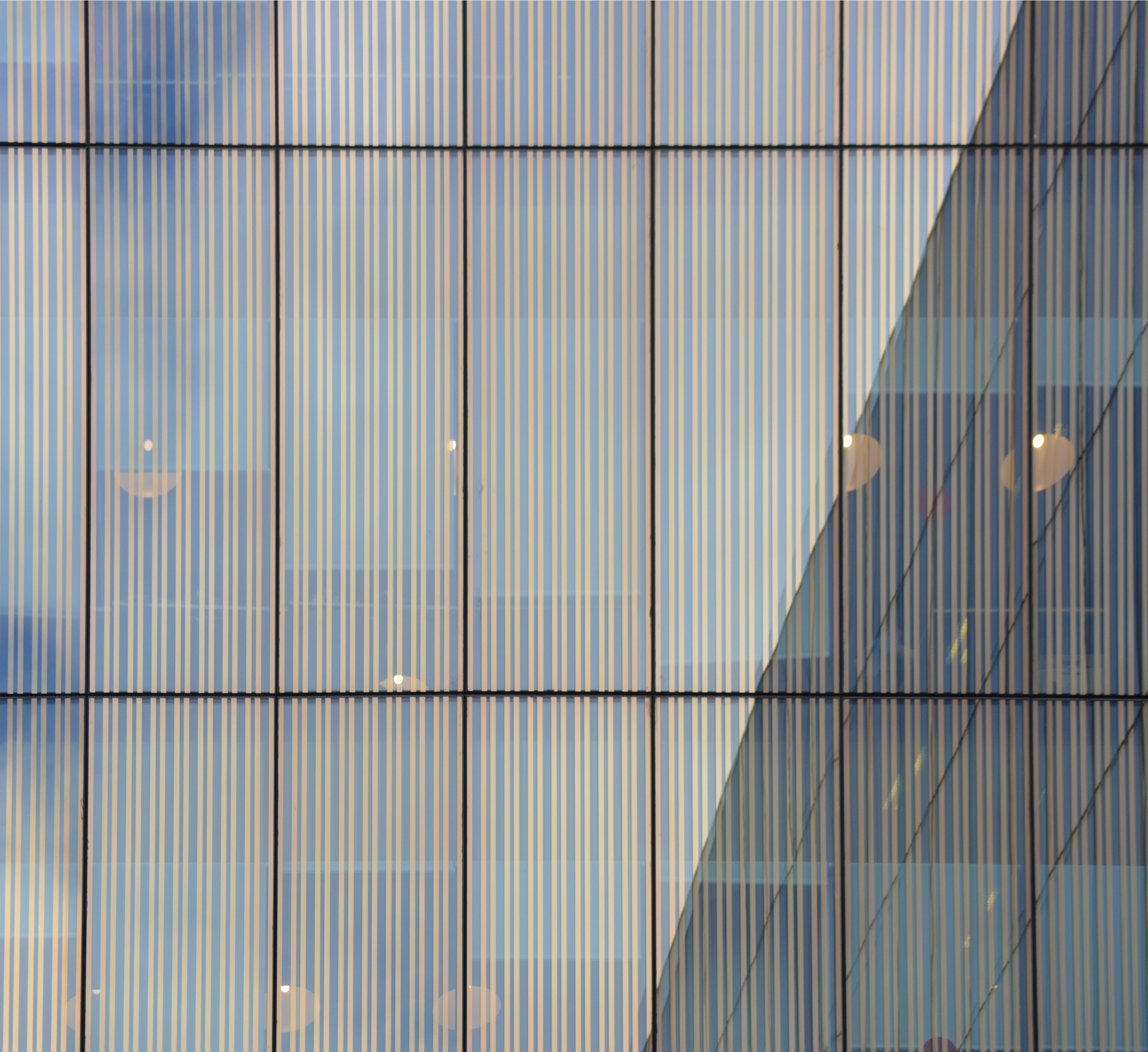

Edificio Luxa

Location:
Carrer de Tànger, 86
08018 Barcelona Barcelona
Spain
Year of construction:
2018
Solution:
Weight of the entire facade:
Period:
Finishing material:
Supporting element:
Companies:
Photographer:

Ph 1,5, Andrés Echarri

Ph 2, 3, 4, 6-13, Wicona

Authorship of the graphical documentation:

Wicona
